Die Per Wafer Formula. With a die area A 50 mm 2 and a 300 mm wafer the number of Gross Dies per Wafer GDW can be estimated to 1278 23. Als Teil des Betriebsgeheimnis wird sie von den Herstellen. This gives 172 dies on that wafer. Die Per Wafer Formula The following formula is used to calculate the die per wafer.
Die Per Wafer Formula The following formula is used to calculate the die per wafer. The link to the author is within the calculator Die Per Wafer Calculator 100. Of course theres defect rate to consider. Als Teil des Betriebsgeheimnis wird sie von den Herstellen. Dies per wafer π Wafer_diam 2 2 π Wafer_diam Test dies Die Area 2 Die Area Die Yield Wafer yield 1. Shave off maybe 5000mm2 for edges and youre at 65000171000000 11 trillion transistors for 17k or about 650 million transistors per dollar.

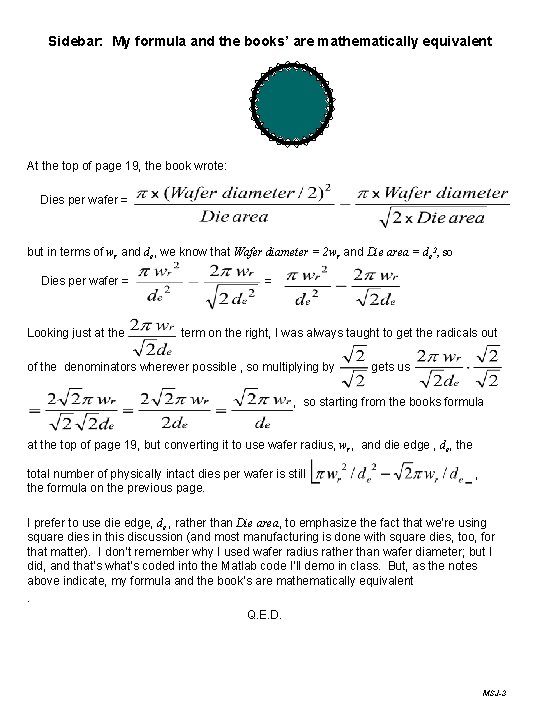

Dies per wafer π Wafer_diam 2 2 π Wafer_diam Test dies Die Area 2 Die Area Die Yield Wafer yield 1.
Depending on the wafer diameter and edge Loss area the maximum number of Dies and wafer map will be automatically updated. YIELDlenwidexclwfrdefsel Calculate gross and net die per wafer and yield len length of the die stepping distance of the die in X in mm wid width of the die stepping distance of the die in Y in mm excl size of the edge exclusion region in mm wfr diameter of the wafer in. Different forms of gross die per wafer formulas are investigated with respect to the accuracy in which they model the exact gross die per wafer count as a function of die area and die aspect ratio. Die Per Wafer Calculator 100. We then need to remove those partial-dies at the circumference of the circle. Investigation of gross die per wafer formulas.
